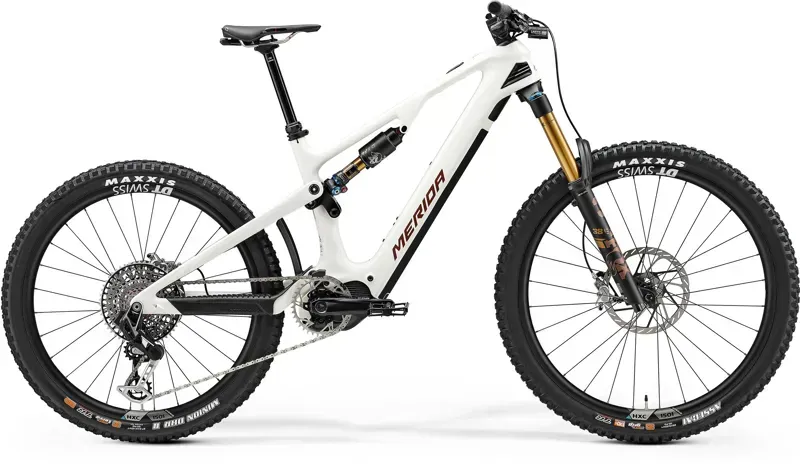

Merida eOne-Sixty 10K E-Mountain Bike In White/Bronze

Season:2025

Brand:Merida

Code:P-Q880

Why accept compromises?

The eONE-SIXTY 10K is a lightweight, full-power e-bike that can tackle the toughest trails, whether you're racing against the clock or just racing to get in more runs. The full CF4 carbon frame offers uncompromised handling and is paired with the best kit money can buy, including SRAM's wireless XX T-type drivetrain and top-end Fox suspension. The built-in 600 Wh battery plus the optional 360 Wh range extender means you can go lightweight or long, whatever suits you.

The eONE-SIXTY CF combines an enduro-ready lightweight full carbon chassis with a full-support motor, 600 Wh battery, and an optional 360 Wh range extender. With 170 mm travel at the front and 174 mm at the rear, it's designed to be perfectly at home on a race track or just hitting the trails on repeat. The award-winning FAST kinematic suspension and AGILOMETER sizing of the ONE-SIXTY enduro bike are combined with proven e-bike heritage, offering a thoroughbred bloodline.

The low-maintenance flexstay suspension offers size-tuned progression to maximise performance for all sizes of riders, plus it can be run with the latest coil shocks. With mixed size 29" front and 27.5" rear wheels as standard for playful handling, it can switch to a focused full 29er setup without messing up the geometry, thanks to the flip chip design. The geometry can take on the toughest enduro trails while maintaining a playful and fun character. The 30-230 mm travel-adjustable dropper post allows for choosing between a longer frame for more stable handling or a shorter one for an agile feel.

Features:

  • Lightweight full carbon fibre CF4 frame with 174 mm rear wheel travel.
  • SRAM XX Eagle Transmission 12-speed wireless drivetrain, DT Swiss carbon wheelset.
  • Fox 38 Factory fork with 170 mm travel and updated Float X2 Factory rear shock.
  • Integrated 600 Wh battery with optional 360 Wh range extender, powerful Shimano EP801 drive unit.
  • Mixed 'mullet' wheel size as standard, with option to full 29".
  • Reach-based AGILOMETER sizing system with 30-230 mm adjustable dropper post.
Technical Information
  • Frame
    Carbon III - carbon main frame and rear triangle internal battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29 x 2.6.
  • Rear Shock
    FOX Factory Float X2; 2 Pos Lever.
  • Fork
    FOX 38 Factory eMTB+; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29 x 2.6.
  • Headset
    Acros ICR Merida integrated neck with Blocklock.
  • Stem
    Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes.
  • Handlebar
    Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise.
  • Grip
    Merida Expert EC.
  • Brake Type
    Hydraulic disc.
  • Brake Lever
    SRAM Code Ultimate Stealth.
  • Brake Calipers
    Front: SRAM Code Ultimate Stealth 4 piston hydraulic disc brake caliper with SRAM HS2 220mm rotor. Rear: SRAM Code Ultimate Stealth 4 piston hydraulic disc brake caliper with SRAM HS2 200mm rotor.
  • Tyres
    Front: Maxxis Assegai; 29 x 2.5; Kevlar bead, folding; TR EXO+ 3C MaxxGrip. Rear: Maxxis DHR II; 27.5 x 2.4; Kevlar bead, folding; 3C DD TR MaxxTerra.
  • Wheels
    Rims: Part of wheelset - DT Swiss HXC 1501; 30mm inner rim width; carbon; Tubeless ready (tubeless tape and valves included). Spokes: Part of wheelset. Front Hub: Part of wheelset - DT Swiss HXC 1501; 110x15mm; 6-Bolt. Rear Hub: Part of wheelset - DT Swiss HXC 1501; 148x12mm; 6-Bolt; SRAM XD with Merida Expert TR; including removable lever, 6/4mm allen key.
  • Speeds
    12 Speed.
  • Rear Derailleur
    SRAM XX Eagle Transmission AXS.
  • Shift Levers
    Limotech RM10 (For SRAM MMX) dropper lever and SRAM AXS Pod Controller.
  • Chain
    SRAM XX Eagle - Flattop.
  • Cassette
    SRAM XX Eagle Transmission; 10-52; 12 Speed.
  • Chainset
    SRAM XX Eagle Transmission E-MTB for Steps; 36 teeth with Shimano FC-EM900 crank; 165mm all sizes; with Merida chain guide.
  • Bottom Bracket
    Part of Shimano Steps motor.
  • Pedals
    VP VPE-527.
  • Saddle
    Proxim Nembo Triox; V-mount adapter; including Merida minitool.
  • Seat Post
    Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel.
  • Motor
    Trendpower TPS-C15-58SD; 600Wh integrated, Shimano EP801; 85Nm.
  • Battery Capacity
    600Wh.
  • eBike Display
    Shimano SC-EM800.
Sizing Information

Merida eOne-Sixty Size Chart

XS157 – 1655’1” – 5’5”
S165 -1715’5” – 5’7”
M171 - 1795’7” – 5’11”
L179 - 1875’11” – 6’2”
XL187 - 1986’2” – 6’6”
